Supply Ability
30000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Ningbo / Wenzhou / Shanghai
Lead Time:
| Quantity(Sets) | 1 - 100 | >100 |
| Est. Time(days) | 15 | To be negotiated |

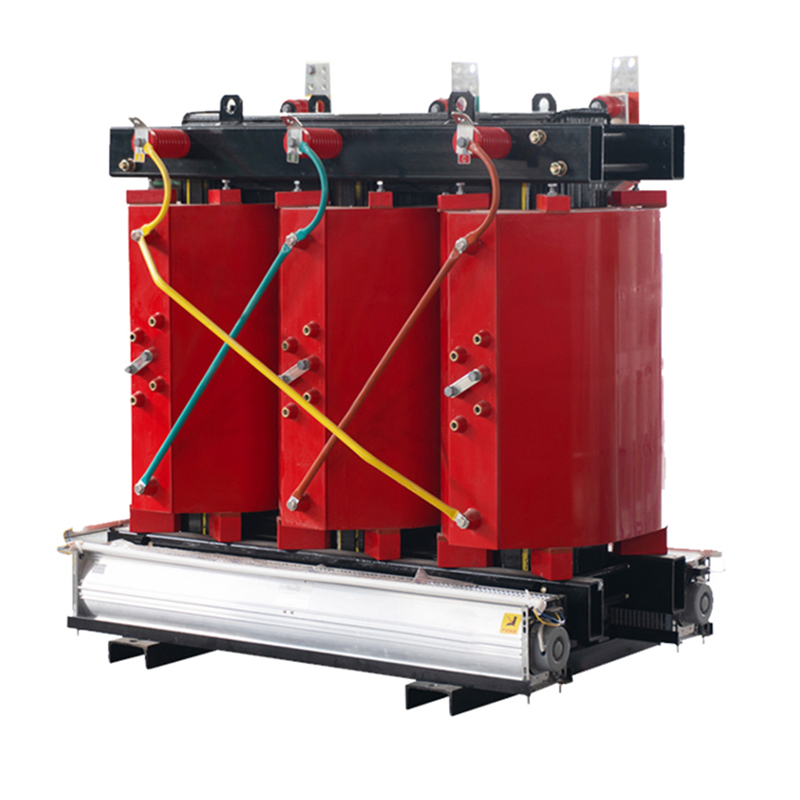

Resin-insulated dry-type transformers are safe, non-flammable, fireproof, and pollution-free. It can be directly installed in the load center, maintenance-free, easy to install, low overall operating cost, low loss, good moisture-proof performance, can operate normally under 100% humidity, and can be put into operation after shutdown without pre-drying. Low partial discharge, low noise, strong heat dissipation capacity, 120% rated load operation under forced air cooling. Equipped with a complete temperature protection and control system, it provides a reliable guarantee for the safe operation of the transformer with high reliability.
Specification
| Name | SCB13 Series Resin Insulated Dry-type Transformer |
| Rated Capacity | 10KVA-4000KVA |
| High voltage | 6KV-11KV |
| Low voltage | 0.4 KV |
| Connection symbol | Yyn0 / Dyn11 |
| Short circuit Impedance | 4%-8% |
| Tapping range of high-voltage | ±5% ± 2 ×2.5% |
| Phases | Three phase |
| No-load current(%) | 1%-2.6% |
| Insulating level | LI75AC35/L I0AC5 |
Main material and characteristics: Class F coil insulated copper wire as conductor, glass fiber and epoxy resin composite materials for insulation, its coefficient of expansion similar to the copper conductor.with good impact resistance, temperature changes, crack resistance. Glass fiber and epoxy resin constituent all have self-extinguishing, it does not continue to burn, it does not produce toxic gases and pollute the environment.Epoxy resin has good insulating properties, particularly suitable for the production of high-voltage level Manufacturing process: The winding wound on the high-accuracy winding machine, when winding pave cast grass fibre around the external and internal of the winding, there be armed air passage for transformer of large ca Then dry it in vacuum.The whole casting and solidifying process is performed according to the pi curve of casting control terminal, which transferred through computer network by process department every process can be monitored momentarily and adjusted for the various surroundings. The precise process ensures free bubble and free hole of winding.
Q 1.What’s the payment term?
A. We accept TT,LC,Western Union,Paypal.
Q 2.What is the delivery time?
A. It depends on order quantity,usually it will take about 3-5 days for sample production.
Q 3.What’s the package used for?
A. For the small capacity,will use carton,but for big capacity,we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo?
A.It’s no problem,we accept OEM service.
Q 5.What’s your production capacity for one month?
A. Our month capacity can reach near 500-3000pcs for the most of our model.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificates you have?
A. Our company has ISO9001,CE, RoHS,SGS etc.
